Bearing Housing: Function, Design Considerations, and Manufacturing

What Does a Bearing Housing Do?

A bearing housing — also called a bearing holder or bearing bracket — is the structural component that locates and supports a rolling element bearing in a machine assembly. It holds the bearing in the correct position relative to the shaft and surrounding structure, transfers bearing loads into the machine frame, and in many designs provides sealing to keep lubricant in and contaminants out.

The housing does not rotate. It is fixed to the machine frame or motor body, and the shaft runs through the bearing inside it. This means the housing bore must be dimensionally accurate and stable — any deviation in bore diameter, coaxiality, or surface finish at the bearing seat affects how the bearing seats, how it loads, and how long it lasts.

Bearing Housing Design Considerations

Bore Fit and Tolerance

The bore of the bearing housing must match the outer diameter of the bearing to the correct interference or clearance fit. For most rolling element bearings in rotating outer ring applications, a slight clearance fit (H7 tolerance class is common) allows the bearing to be installed and removed without damage. Bore coaxiality is equally important — a bore that is not concentric with the housing mounting face causes the bearing to run misaligned, increasing load and reducing service life. We hold bore coaxiality within 0.05 mm across production batches.

Wall Thickness and Structural Rigidity

The housing wall must be thick enough to carry the bearing load without deflecting under operating conditions. For cast iron bearing housings in industrial motor and pump applications, wall thickness is determined by the load case and material grade. Ductile iron QT400–700 provides higher tensile strength and impact resistance than gray iron HT150–350, making it the preferred grade for higher-load applications.

Sealing and Lubrication

Many bearing housings incorporate a seal groove or labyrinth feature at the shaft exit to retain grease or oil and exclude contaminants. The geometry of this feature needs to be maintained in production — dimensional variation here affects seal performance directly.

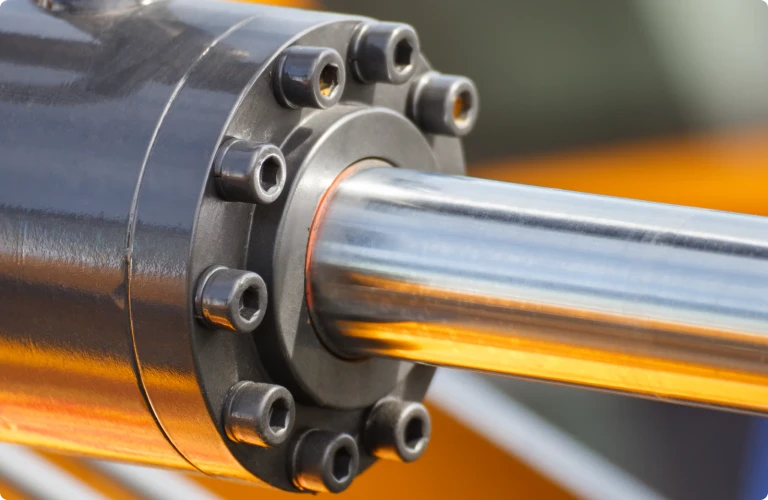

Bearing Housing Assembly: What It Includes

A bearing housing assembly typically consists of the housing body, the rolling element bearing, end covers or seal plates, and in some configurations the shaft itself. For OEM clients who need to minimize assembly steps and supplier count, we can supply the bearing housing and precision shaft as matched, pre-verified components from our facility. Our shaft workshop produces shafts to coaxiality within 0.003 mm, and we verify shaft-to-housing fit before shipment when supplied as an assembly.

Cast Iron vs Aluminum Alloy: Choosing the Right Material

The material choice for a bearing housing comes down to the application's load, weight, and thermal requirements.

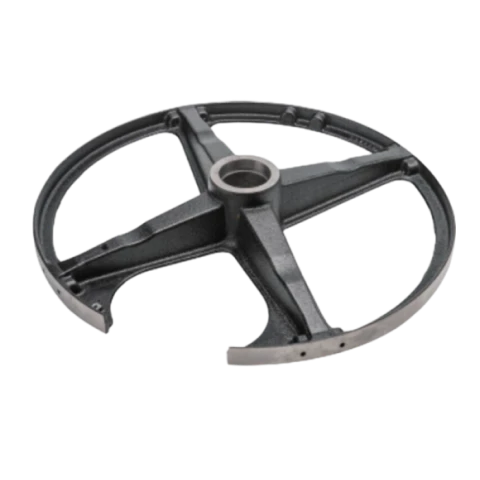

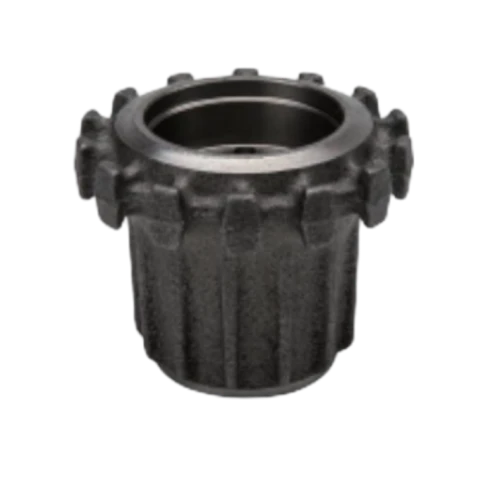

Cast iron — particularly ductile iron QT400–700 — is the standard for industrial motors, pumps, and compressors where high radial loads and continuous operation demand structural rigidity. Gray iron HT150–350 is used in cost-sensitive general industrial applications where peak loads are moderate. Both grades are well suited to the dampening of vibration, which is relevant in rotating machinery.

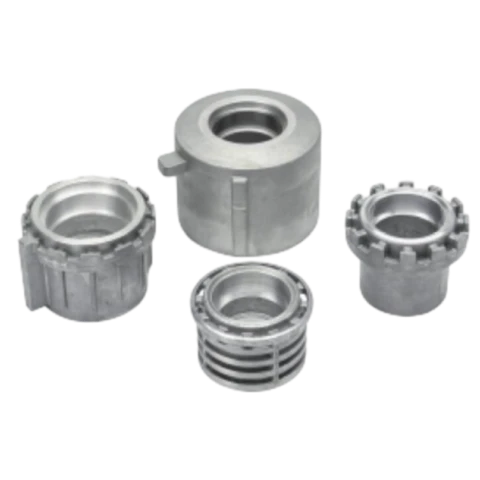

Aluminum alloy die cast bearing housings are standard in home appliance motor applications. The weight reduction compared to cast iron is significant — relevant in appliances where total product weight affects shipping cost and user handling. Aluminum also dissipates heat more effectively, which matters in motor-adjacent locations. Die casting produces consistent wall thickness and bore geometry at production volume, and our process delivers bore coaxiality within 0.05 mm as a standard production spec.

Manufacturing Process for Custom Bearing Housings

Tooling and Casting

For aluminum alloy bearing housings, we design die casting tooling in-house using UG 3D modeling and JSCAST simulation, validating fill, shrinkage, and cooling before cutting steel. For cast iron versions, pattern tooling is similarly designed and managed internally. Casting is followed by shot blasting to clean the surface before machining.

CNC Machining

The bearing bore, mounting face, and any seal grooves are finish-machined on CNC lathes and machining centers after casting. This post-machining step is what achieves the bore tolerance required for bearing fit — casting alone cannot hold the dimensional accuracy needed at the bearing seat interface.

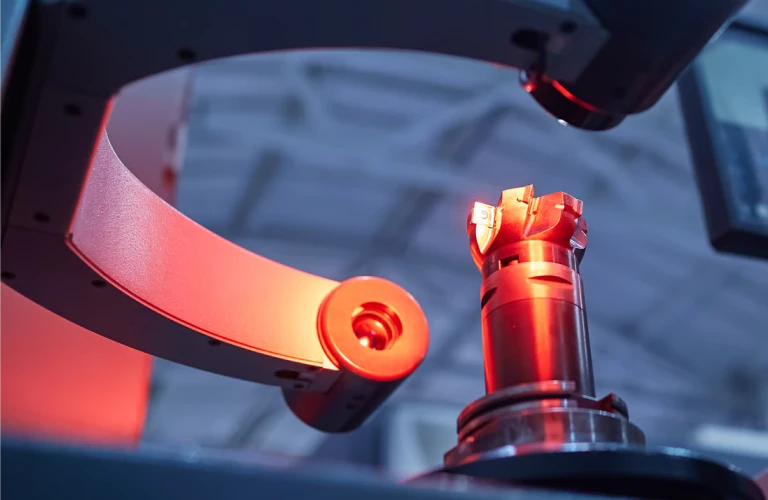

Inspection

Bore dimensions and coaxiality are verified by CMM before shipment. Material composition is verified by fluorescence spectrometer — we can provide material grade confirmation on request. X-ray inspection is available for internal defect detection on cast components. Our quality system operates under IATF 16949.
